Key Features and Benefits:
Heavy Duty energy efficient and soundless Belt Driven Ventilation Fans
Versatile Applications: Suitable for a wide range of industrial and commercial environments
Powerful Performance: High airflow capacity provides efficient ventilation in large industrial spaces.
Durable Construction: Built for demanding industrial environments, ensuring long-lasting reliability.
Direct Drive and Belt Drive Options: Provides flexibility to choose the best drive mechanism based on specific operational needs.
Specifications
-

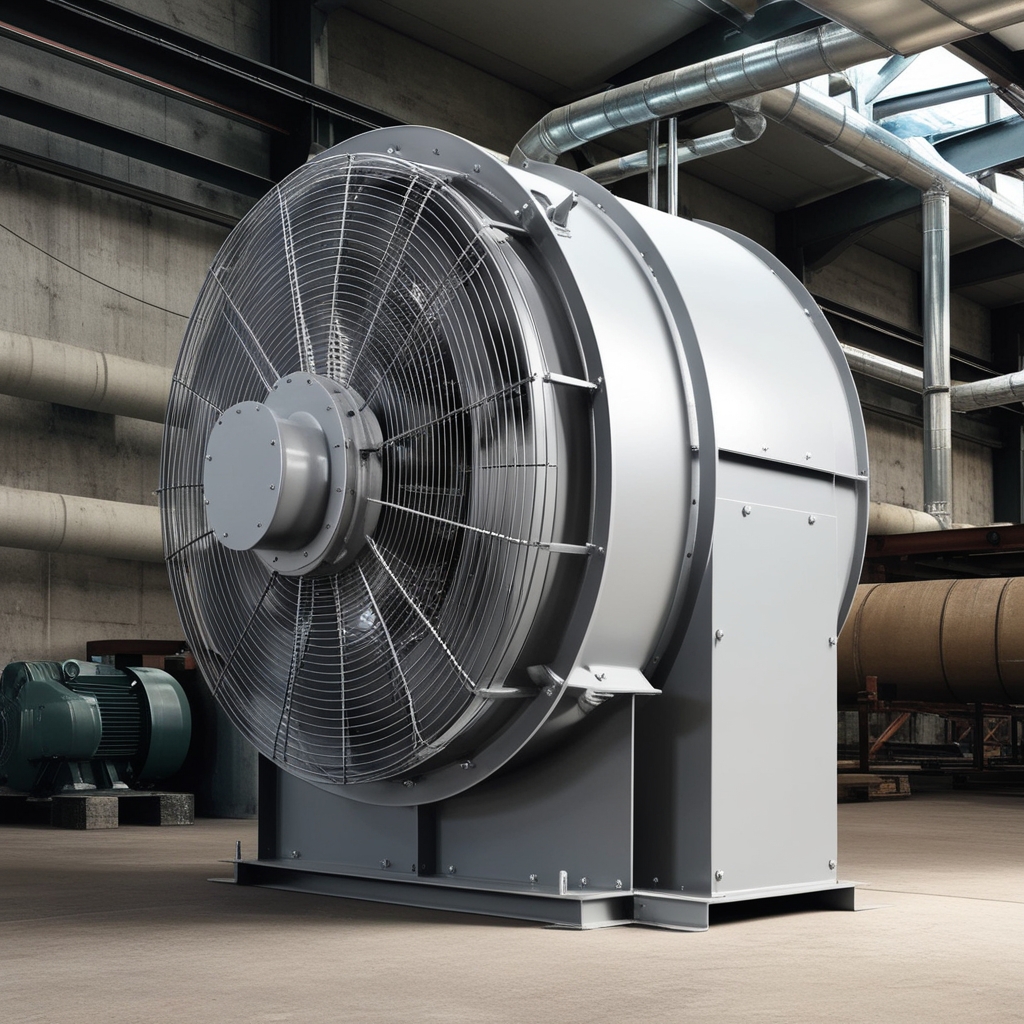

- Heavy Duty Belt Driven Ventilation Fans
| Model Number | Blade Dia (in) | Outer Size (in) | Air Flow (CFM) | Motor Power (HP) | Supply Voltage (V) | Phase | Frequency (Hz) | Max Current (A) | Rotating Speed (RPM) |
|---|---|---|---|---|---|---|---|---|---|
| GEC-BOC-54 | 54 | 54×54 | 24000 | 2 | 400 | 3 | 50 | 27 | 500 |
| GEC-BOC-48 | 48 | 48×48 | 18000 | 1.5 | 400 | 3 | 50 | 20 | 500 |
| GEC-BOC-42 | 42 | 42×42 | 13000 | 1 | 400 | 3 | 50 | 16 | 650 |
| GEC-BOC-36 | 36 | 36×36 | 9000 | 0.75 | 400 | 3 | 50 | 12 | 850 |
-

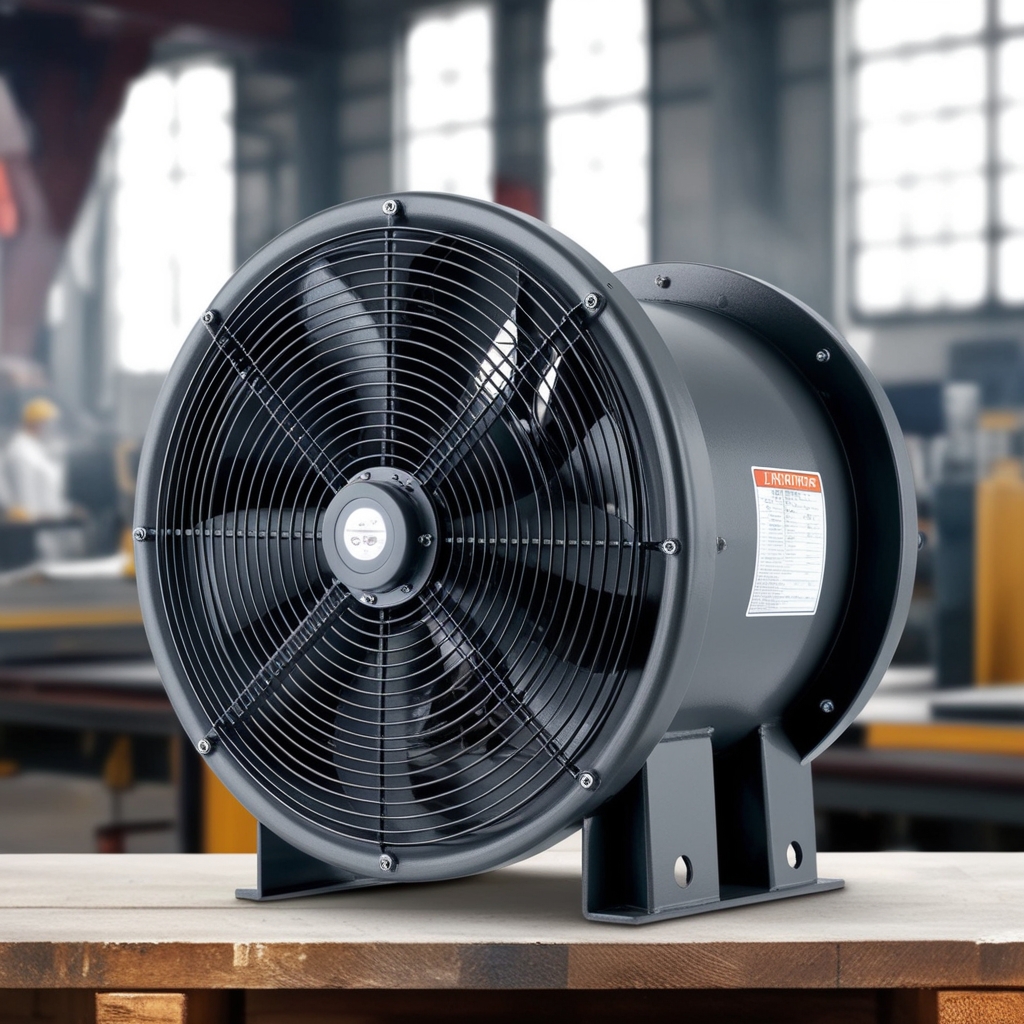

- Heavy Duty Direct Driven Ventilation Fans
| Model Number | Blade Dia (in) | Outer Size (in) | Air Flow (CFM) | Motor Power (HP) | Supply Voltage (V) | Phase | Frequency (Hz) | Max Current (A) | Rotating Speed (RPM) |
|---|---|---|---|---|---|---|---|---|---|
| GEC-DAC-24 | 24 | 24×24 | 6000 | 2 | 400 | 3 | 50 | 2.6 | 1450 |
| GEC-DAC-30 | 30 | 30×30 | 9000 | 3 | 400 | 3 | 50 | 5 | 1450 |
